module MultiGridBarrier

MultiGridBarrier solves nonlinear convex optimization problems in function spaces using a barrier (interior-point) method accelerated by a multigrid hierarchy. The package exposes:

• Single-level mesh constructors: fem1d, fem2d, fem2d_P1, fem2d_P2, fem3d, spectral1d, spectral2d. Each returns a Geometry.
• The hierarchy builder: amg(geom) wraps a Geometry and returns a MultiGrid (algebraic-multigrid hierarchy on the fine mesh).
• A mesh-refinement utility: subdivide(geom, L) returns a refined Geometry. Compose with AMG via amg(subdivide(geom, L)).
• A legacy geometric-subdivision hierarchy: geometric_mg(geom, L). Still available for callers that specifically want geometric transfers; new code should prefer amg.
• Problem assembly: assemble(mg::MultiGrid; kwargs...) -> MGBProblem.
• The main solver: mgb_solve(prob::MGBProblem; kwargs...) -> MGBSOL.
• A time-dependent solver: parabolic_solve(mg::MultiGrid; kwargs...).

A gentle introduction via the p-Laplacian

For a domain Ω ⊂ ℝᵈ and p ≥ 1, consider the variational problem

\[\min_{u} \; J(u) = \int_{\Omega} \|\nabla u\|_2^p + f\,u \, dx\]

subject to appropriate boundary conditions (e.g., homogeneous Dirichlet). The Euler–Lagrange equation gives the p-Laplace PDE.

Typical workflow

geom = fem2d_P2()                       # single-level mesh
mg   = amg(geom)                        # build AMG hierarchy
prob = assemble(mg; p = 1.5)            # assemble the (native) MGBProblem
sol  = mgb_solve(prob)
plot(sol)

CUDA GPU acceleration (optional extension)

CUDA support is provided as a Julia package extension (MultiGridBarrierCUDAExt). Load CUDA and CUDSS_jll to enable it, then select the GPU with device = CUDADevice:

using CUDA, CUDSS_jll
using MultiGridBarrier
sol = mgb_solve(assemble(amg(fem2d_P2()); p = 1.5); device = CUDADevice)

mgb_solve moves the assembled problem to the GPU, solves there, and moves the solution back, so the returned MGBSOL is always in native CPU types. When a functional GPU is present the default device becomes CUDADevice; pass device = CPUDevice to force the CPU. The lower-level native_to_cuda / cuda_to_native converters remain available.

See also

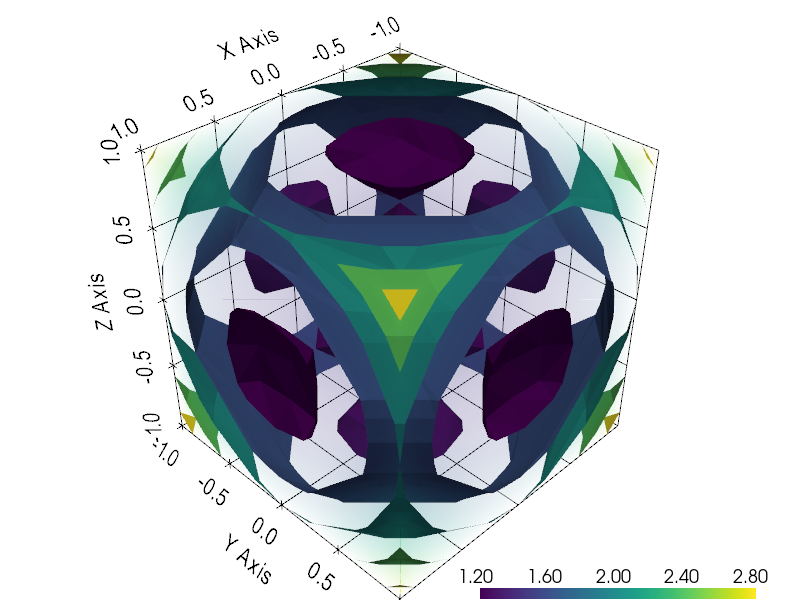

• Mesh constructors: fem1d, fem2d, fem2d_P1, fem2d_P2, fem3d, spectral1d, spectral2d.
• Hierarchy: amg, subdivide (and the legacy geometric_mg).
• Solvers: mgb_solve, parabolic_solve.
• Convex: convex_Euclidian_power, convex_linear, convex_piecewise, intersect.
• Visualization & sampling: plot, interpolate.
• Backend selection: device kwarg of mgb_solve, CPUDevice, CUDADevice, native_to_device, device_to_native, default_device.
• Problem assembly: assemble, MGBProblem.
• CUDA (lower level): native_to_cuda, cuda_to_native, clear_cudss_cache!.

CPUDevice <: Device

The native CPU backend; native_to_device/device_to_native are the identity.

CUDADevice <: Device

The CUDA GPU backend. Requires the MultiGridBarrierCUDAExt extension, enabled by using CUDA, CUDSS_jll before (or alongside) using MultiGridBarrier.

Convex{T}

Container for a convex constraint set used by the MGB solver.

Fields:

• barrier: (F0, F1, F2) - value, gradient, Hessian functions
• cobarrier: (F0, F1, F2) - with slack for feasibility
• slack: initial slack function
• args: tuple of parameter arrays, splatted to maprowsgpu

Barrier functions receive (args_rows..., y) where args_rows are per-vertex parameter data (via broadcasting), and y is the solution SVector. This enables true GPU execution without scalar indexing.

Construct via helpers like convex_linear, convex_Euclidian_power, convex_piecewise, or intersect. These helpers return a single Convex{T} (the barrier is evaluated only at the fine level).

abstract type Device

Marker selecting the compute backend for mgb_solve. Concrete devices are CPUDevice (always available) and CUDADevice (requires the CUDA extension: using CUDA, CUDSS_jll).

FEM2D_P1{T}

Discretization tag for 2D P1 triangular FEM. Stores the user's per-element corner tensor K of shape (3, N, 2) — K[v, t, d] is coordinate d of vertex v of triangle t.

FEM2D_P2{T}

2D FEM (P2+bubble) discretization descriptor. Stores the corner triangulation K shape (3, N, 2) and the canonical P2+bubble mesh K7 shape (7, N, 2).

Geometry{T,X<:AbstractArray{T,3},W,M_op,Discretization}

Single-level container for discretization geometry. Holds only the fine-level mesh and operators — no multigrid hierarchy. Use amg(geom) to attach an algebraic-multigrid hierarchy and return a MultiGrid. (The legacy geometric_mg(geom, L) builds a geometric-subdivision hierarchy instead; new code should prefer amg.)

Type parameters

• T: scalar numeric type (e.g. Float64)
• X<:AbstractArray{T,3}: type of the mesh tensor x (typically Array{T,3}).
• W: type of the weight storage w (typically Vector{T}).
• M_op: matrix type for operators (e.g. SparseMatrixCSC{T,Int}, BlockDiag{T}).
• Discretization: front-end descriptor (e.g. FEM1D{T}, FEM2D_P2{T}, SPECTRAL1D{T}).

Fields

• discretization::Discretization: discretization descriptor encoding dimension and grid info.
• x::X: mesh as a 3-tensor of shape (V, N, D) — V vertices per element, N elements, D spatial dimensions. Reshape-compatible with the legacy flat layout via reshape(x, V*N, D) (zero-copy). Spectral discretizations use N = 1 (a single notional "element" comprising every Chebyshev node).
• w::W: quadrature weights matching the flattened node order (length V*N).
• operators::Dict{Symbol,M_op}: fine-level discrete operators (e.g. :id, :dx, :dy).

HTML5anim

Wrapper around an HTML5 <video> produced by the parabolic-animation plot methods. It carries the rendered video markup in its anim::String field and defines show(io, MIME"text/html"(), ::HTML5anim), so returning one as the last value of a Jupyter/Pluto cell (or in Documenter output) embeds the animation inline.

MGBConvergenceFailure <: Exception

Thrown when the MGB solver fails to converge (feasibility or main phase). Includes a descriptive message about the failure.

MGBProblem{T,MT,FT,GT,QT,GeoT}

A fully assembled, array-valued, closure-free convex problem ready for the MGB solver. Produced by assemble; consumed by mgb_solve. Every closure that specifies the problem (f, g, and the constraint data A, b, p, select) has been lowered to per-vertex grids during assembly, so an MGBProblem is pure data: moving it between backends (native_to_device) is plain array movement, and a MGBProblem{T,...,CuArray,...} differs from its CPU sibling only by array type.

Fields

• M: the (main, feasibility) AMG hierarchy pair (_prepare_amg output).
• f: linear-term grid (f_grid).
• g: Dirichlet/initial-data grid (g_grid).
• Q::Convex: the convex constraint (its args are per-vertex grids).
• geometry: the fine-level Geometry (for the returned solution / plotting).

MultiGrid{T,M_R,G<:Geometry{T}}

A Geometry plus a multigrid hierarchy. For each state-variable subspace symbol (:dirichlet, :full, :uniform, or a user-named Dirichlet class) the hierarchy stores a single family of fine-level prolongations R[X][l]: the matrix that lifts level-l-X-subspace coefficients directly to the fine broken basis (the R_{ℓ,X} of the paper). R[X][end] is the fine-level subspace embedding itself (identity for :full, the constant column for :uniform, the continuous zero-trace embedding for Dirichlet classes).

The per-level (level → level+1) transfer/restriction operators are an implementation detail of amg/geometric_mg: they are composed into the R[X][l] at construction time and not retained, since the solver only ever evaluates the barrier at the fine level and restricts to a coarse search space via R[X][l].

Fields

• geometry::G: the fine-level Geometry.
• R::Dict{Symbol,Vector{M_R}}: R[X][l] is the level-l → fine prolongation in subspace X.

Constructors

• MultiGrid(geometry, subspaces, refine) — stretches the per-subspace hierarchies to a common depth, normalizes :uniform, and composes R[X][l] = (refine[X] chain l→L) · subspaces[X][l]. Accepts either per-subspace Dict transfers or plain Vectors (replicated across every subspace key).
• MultiGrid(geometry, R) — store precomposed prolongations directly (e.g. the Kronecker construction in spectral2d).

SPECTRAL1D{T}

1D spectral discretization descriptor (Chebyshev). Field: n::Int (nodes).

SPECTRAL2D{T}

2D spectral discretization descriptor (tensor Chebyshev). Field: n::Int (nodes per dim).

TensorFEM{d, T}

Discretization descriptor for d-dimensional tensor-product Q_k Lagrange FEM.

Fields

• k::Int: polynomial order (each element carries (k+1)^d Lagrange-Chebyshev nodes).
• K::Array{T,3}: the Q1 corner mesh tensor of shape (2^d, N, d) — K[v, e, c] is coordinate c of corner v of element e. Corners are in tensor-product order over {-1,+1}^d (axis-1 fastest). Informational / used by geometric_mg.

FEM1D = TensorFEM{1} and FEM2D = TensorFEM{2} are provided as aliases.

intersect(mg::MultiGrid, U::Convex{T}, rest...) where {T}

Return the intersection of convex domains as a single Convex{T}. Equivalent to convex_piecewise with all pieces active at all vertices.

amg(geom::Geometry; prolongator=amg_ruge_stuben(max_coarse=2), dirichlet_nodes=Dict(:dirichlet => find_boundary(geom))) -> MultiGrid   # FEM
amg(geom::Geometry) -> MultiGrid                                                                          # spectral

Build an algebraic-multigrid hierarchy on top of geom, returning a MultiGrid. Dispatched per discretization; the hierarchy's fine level matches geom.

Keyword arguments (FEM discretizations: FEM1D, FEM2D_P1, FEM2D_P2, FEM3D)

• prolongator = amg_ruge_stuben(max_coarse=2): the algebraic-multigrid hierarchy builder used to coarsen the auxiliary P1 problem. A prolongator is a callable mapping a SparseMatrixCSC{Float64,Int} stiffness to the vector of level prolongation matrices (finest → coarsest); these set the depth of the hierarchy. Three factory functions construct one while capturing the underlying AMG parameters:

  • amg_ruge_stuben(; kwargs...) — classical Ruge–Stüben (the default), via AlgebraicMultigrid.ruge_stuben. The depth parameter max_coarse is set through the factory, e.g. amg(geom; prolongator=amg_ruge_stuben(max_coarse=4)).
  • amg_smoothed_aggregation(; kwargs...) — smoothed aggregation, via AlgebraicMultigrid.smoothed_aggregation.
  • amg_pyamg(; solver=:rootnode, kwargs...) — the Python pyamg package (:rootnode energy-minimization, :smoothed_aggregation, or :ruge_stuben), imported lazily through PyCall.

  All kwargs are forwarded to the underlying solver.

• dirichlet_nodes::Dict{Symbol,Vector{Tuple{Int,Int}}} = Dict(:dirichlet => find_boundary(geom)): one entry per zero-trace ("dirichlet-style") subspace. Each key is a subspace symbol you may assign to a state-variable component via state_variables, and its value is the set of mesh nodes constrained to zero trace in that subspace, given as (vertex, element) index pairs (the format find_boundary returns).

  The default builds a single :dirichlet subspace constraining the whole boundary ∂Ω. To impose different Dirichlet boundaries on different components, name them and supply a node set for each, e.g. for z = (u, s) with u clamped on the north edge and s on the south:

  state_variables = [:u :dirichlet_north
                     :s :dirichlet_south]
  mg = amg(geom; dirichlet_nodes = Dict(:dirichlet_north => north_pairs,
                                        :dirichlet_south => south_pairs))

  Per entry, pass a subset of ∂Ω for mixed Dirichlet/Neumann conditions, Tuple{Int,Int}[] for pure Neumann, or a single pinned node to break the constant nullspace. The reserved subspaces :full (all-corners Neumann) and :uniform (global constants) are always available and must not appear as keys. These select which nodes are constrained; the boundary values (the Dirichlet lift g) are supplied separately to mgb_solve.

• auxiliary_postprocess::Function = identity (opt-in, FEM1D / FEM2D_P1 / FEM3D): a unary function applied to the all-corners (Neumann) auxiliary stiffness before it is fed to prolongator. Use to swap the geometric Galerkin matrix for a graph-Laplacian-style operator that AMG coarsens on graph topology alone. Example: pass the combinatorial Laplacian of the same sparsity (off-diag = -1, diag = degree) when running aggregation-based prolongators (amg_smoothed_aggregation, amg_pyamg(:rootnode)) on highly anisotropic problems near p=1 — that regime can otherwise blow up Newton iteration counts on the central path. The default identity is robust across the bench (the geometric stiffness encodes useful per-row scaling that RS uses), so this is an opt-in escape hatch rather than a recommended default.

Spectral discretizations (SPECTRAL1D, SPECTRAL2D)

amg(geom) takes no keyword arguments. The zero-trace subspace is built by basis truncation rather than node masking, so dirichlet_nodes does not apply.

See also find_boundary, geometric_mg, subdivide.

amg_pyamg(; solver::Symbol=:rootnode, kwargs...) -> prolongator

Build a prolongator backed by the Python pyamg package (imported lazily via PyCall, installing from conda-forge if necessary). solver selects the pyamg solver: :rootnode (rootnode energy-minimization, the default), :smoothed_aggregation, or :ruge_stuben. Any kwargs are forwarded to the pyamg solver constructor. Pass the result to amg(geom; prolongator=...).

amg_ruge_stuben(; kwargs...) -> prolongator

Build a prolongator that runs classical Ruge–Stüben AMG via AlgebraicMultigrid.ruge_stuben (the package default). Any kwargs (e.g. max_coarse=4) are forwarded. Pass the result to amg(geom; prolongator=...).

amg_smoothed_aggregation(; kwargs...) -> prolongator

Build a prolongator that runs smoothed-aggregation AMG via AlgebraicMultigrid.smoothed_aggregation. Any kwargs (e.g. max_coarse=4) are forwarded. Pass the result to amg(geom; prolongator=...).

assemble(mg::MultiGrid{T}; kwargs...) -> MGBProblem

Lower a problem specification to a closure-free, CPU MGBProblem. This is the single place where the problem closures are evaluated to grids: f/g via map_rows, and the constraint closures inside Q at its construction. The result is a backend-agnostic, native data structure; to solve on a GPU, hand it to mgb_solve(prob; device=CUDADevice), which moves it to the device and the solution back.

The five MGBProblem fields are built from mg and the keyword arguments as:

Keyword Arguments

• dim::Integer = amg_dim(mg.geometry.discretization): spatial dimension; auto-detected.
• state_variables = [:u :dirichlet; :s :full], D = default_D(dim): solution components / function spaces and the differential operators applied to them; together they define M.
• x = _xflat(mg): sample points where f/g are evaluated, one row per node.
• p::T = T(1.0): p-Laplace exponent for the default Q.
• f/f_grid, g/g_grid: forcing and boundary/initial data, as closures (lowered via map_rows) or as pre-built grids.
• Q::Convex{T}: convex constraint; defaults to a p-Laplace power-cone barrier.
• M: supply an AMG hierarchy pair directly instead of building it from mg.

Any extra (solver-control) keywords are accepted and ignored.

clear_cudss_cache!()

Destroy all cached cuDSS factorizations and free associated GPU memory.

convex_Euclidian_power(::Type{T}=Float64; mg, idx=Colon(), A=(x)->I, b=(x)->T(0), p=x->T(2), ...)

Create a convex set defined by Euclidean norm power constraints, with GPU support.

Constructs a Convex{T} representing the power cone: {y : s ≥ ‖q‖₂^p} where [q; s] = A(x)*y[idx] + b(x)

This is the fundamental constraint for p-Laplace problems where we need s ≥ ‖∇u‖^p for some scalar field u.

Arguments

• T::Type=Float64: Numeric type for computations

Keyword Arguments

• mg::MultiGrid: Required. The multigrid hierarchy (provides the fine grid).
• idx=Colon(): Indices of y to which transformation applies
• A::Function: Matrix function x -> A(x) for linear transformation
• b::Function: Vector function x -> b(x) for affine shift
• p::Function: Exponent function x -> p(x) where p(x) ≥ 1
• A_grid, b_grid, p_grid: Optional pre-computed fine grids (computed from A,b,p if not provided)

Returns

A Convex{T} whose barriers capture the pre-computed fine parameter grids and receive (j::Integer, y::SVector) where j is the vertex index.

Mathematical Details

The barrier function is:

• For p = 2: -log(s² - ‖q‖²)
• For p ≠ 2: -log(s^(2/p) - ‖q‖²) - μ(p)*log(s) where μ(p) = 0 if p∈{1,2}, 1 if p<2, 2 if p>2

Examples

# Standard p-Laplace constraint with GPU support
mg = amg(fem1d(Float32; nodes=collect(range(-1f0, 1f0, length=33))))
Q = convex_Euclidian_power(Float32; mg=mg, idx=default_idx(1), p=x->1.5f0)

# Q is a single Convex{Float32}

convex_linear(::Type{T}=Float64; mg, idx=Colon(), A=(x)->I, b=(x)->T(0), A_grid=nothing, b_grid=nothing)

Create a convex set defined by linear inequality constraints, with GPU support.

Constructs a Convex{T} representing linear constraints. Defines F(y) = A * y[idx] + b where A, b are pre-computed per vertex. The interior is F > 0 (logarithmic barrier applied to each component).

Arguments

• T::Type=Float64: Numeric type for computations

Keyword Arguments

• mg::MultiGrid: Required. The multigrid hierarchy (provides the fine grid).
• idx=Colon(): Indices of y to which constraints apply (default: all)
• A::Function: Matrix function x -> A(x) for constraint coefficients
• b::Function: Vector function x -> b(x) for constraint bounds
• A_grid, b_grid: Optional pre-computed fine grids (computed from A,b if not provided)

Returns

A Convex{T} whose barriers capture the pre-computed fine grids.

Examples

mg = amg(fem1d(Float32; nodes=collect(range(-1f0, 1f0, length=33))))

# Box constraints: -1 ≤ y ≤ 1
A_box(x) = SMatrix{4,2,Float32}(1,0,-1,0, 0,1,0,-1)
b_box(x) = SVector{4,Float32}(1, 1, 1, 1)
Q = convex_linear(Float32; mg=mg, A=A_box, b=b_box, idx=SVector(1, 2))

convex_piecewise(::Type{T}=Float64; Q::Tuple{Vararg{Convex{T}}}, mg, select::Function=x->(true,...)) where {T}

Build a single Convex{T} that combines multiple convex domains with spatial selectivity.

Arguments

• Q::Tuple{Vararg{Convex{T}}}: tuple of convex pieces, one Convex{T} each.
• mg::MultiGrid: multigrid hierarchy (provides the fine grid).
• select::Function: a function x -> Tuple{Bool,...} indicating which pieces are active at spatial position x.
• select_grid: (optional) pre-computed fine selection grid. If not provided, computed from select.

Semantics

The resulting Convex has:

• barrier(j, y) = ∑(Q[k].barrier(j, y) for k where sel[j][k])
• cobarrier(j, yhat) = ∑(Q[k].cobarrier(j, yhat) for k where sel[j][k])
• slack(j, y) = max(Q[k].slack(j, y) for k where sel[j][k])

The slack is the maximum over active pieces, ensuring a single slack value suffices for feasibility.

Examples

# Intersection of two convex domains
U = convex_Euclidian_power(Float64; mg=mg, idx=SVector(1, 3), p=x->2)
V = convex_linear(Float64; mg=mg, A=x->A_matrix, b=x->b_vector)
select_both(x) = (true, true)
Qint = convex_piecewise(Float64; Q=(U, V), mg=mg, select=select_both)

# Region-dependent constraints
Q_left = convex_Euclidian_power(Float64; mg=mg, p=x->1.5)
Q_right = convex_Euclidian_power(Float64; mg=mg, p=x->2.0)
select(x) = (x[1] < 0, x[1] >= 0)
Qreg = convex_piecewise(Float64; Q=(Q_left, Q_right), mg=mg, select=select)

See also: intersect, convex_linear, convex_Euclidian_power.

cuda_to_native(x)

Convert a CUDA Geometry, MultiGrid, or MGBSOL back to native CPU types.

default_device!(D::Type{<:Device}) -> Type{<:Device}

Set the device mgb_solve uses when device is not given, and return it. Use this to force a backend regardless of what the CUDA extension auto-selected, e.g. default_device!(CPUDevice) to keep a test suite on the CPU even when a GPU is present. A per-call device= keyword still overrides this default.

default_device() -> Type{<:Device}

The device mgb_solve uses when device is not given. CPUDevice, unless the CUDA extension is loaded and CUDA.functional(), in which case CUDADevice. Pass device=CPUDevice/device=CUDADevice to mgb_solve to override per call.

device_to_native(D::Type{<:Device}, x)

Move x from device D back to native (CPU) types. CPUDevice is the identity; the CUDA extension supplies the CUDADevice method, delegating to cuda_to_native. The inverse is native_to_device.

fem1d(::Type{T}=Float64; nodes, k=1, K=<from nodes>) -> Geometry

Construct a single-level 1D Qk FEM Geometry. Each element carries k+1 Lagrange-Chebyshev nodes; k=1 reproduces the legacy P1 discretization exactly. nodes is the strictly increasing vector of element endpoints (the default mesh is the straight Qk element on each [nodes[i], nodes[i+1]]).

The map is isoparametric: pass K as the full (k+1, n_e, 1) Lagrange-node tensor to give each element a nontrivial 1D parametrization (interior nodes off the affine positions), or as the (2, n_e, 1) endpoint tensor for straight elements. Attach a hierarchy with amg(geom).

fem2d(::Type{T}=Float64; k=1, K=<unit square>) -> Geometry

Construct a single-level 2D Q_k FEM Geometry on quadrilaterals (k=1 is bilinear Q1). The map is isoparametric: pass K as the full ((k+1)^2, N, 2) Lagrange-node tensor (tensor order, axis-1 fastest) for curved quads, or as the (4, N, 2) Q1-corner tensor — order (-1,-1), (+1,-1), (-1,+1), (+1,+1) — for straight quads. Attach a hierarchy with amg(geom).

fem2d_P1(::Type{T}=Float64; K=<default unit-square>) -> Geometry

Construct a single-level 2D FEM P1 Geometry on the doubled-per-element fine triangulation K. Use amg(geom) to attach an algebraic-multigrid hierarchy. (The legacy geometric_mg(geom, L) builds geometric-subdivision transfers instead.)

Arguments

• K::Array{T,3} (3 × N × 2): per-triangle corner tensor; K[v, t, d] is coordinate d of vertex v of triangle t.

The Geometry is intended for Dirichlet boundary conditions.

fem2d_P2(::Type{T}=Float64; K=<default 7-DOF unit square>) -> Geometry

Construct a single-level 2D FEM Geometry on the doubled P2+bubble mesh K (7 × N × 2). Use amg(geom) to attach an algebraic-multigrid hierarchy. (The legacy geometric_mg(geom, L) builds geometric-subdivision transfers instead.)

Arguments

• K::Array{T,3} (7 × N × 2): P2+bubble per-triangle mesh; the 7 vertices per triangle are laid out as corner1, edge(1,2), corner2, edge(2,3), corner3, edge(3,1), centroid.

The element geometry is isoparametric: the map from the reference triangle is built from all 7 node positions via the P2+bubble shape functions, so displacing the edge/centroid nodes off the straight midpoints/barycenter genuinely curves the element (with a node-varying Jacobian). Triangles must be orientation-preserving and non-self-intersecting — construction errors if any element's det J ≤ 0 at a quadrature node, since the barrier method requires strictly positive weights.

fem3d(::Type{T}=Float64; k=3, K=<unit cube>) -> Geometry

Construct a single-level 3D Q_k FEM Geometry on hexahedra. The map is isoparametric: pass K as the full ((k+1)^3, N, 3) Lagrange-node tensor (tensor order, axis-1 fastest) so displacing edge/face/interior nodes curves the hex (node-varying Jacobian), or as the (8, N, 3) Q1-corner tensor for straight hexes. The default is a single straight unit cube. Attach a hierarchy with amg(geom).

find_boundary(geom::Geometry) -> Vector{Tuple{Int,Int}}

Return the (v, e) index pairs of the mesh nodes on ∂Ω, in the per-element layout of geom.x (the 3-tensor of shape (V, N, D)): v is the local vertex index within element e. Duplicates are present — a corner shared by k elements contributes its k pairs (one per element that owns it).

amg(geom; dirichlet_nodes=Dict(:sym => set, …)) consumes these (v, e) pairs: each value set is a Vector{Tuple{Int,Int}} of the nodes constrained to zero trace in subspace :sym. A geometric position is treated as Dirichlet for that subspace iff any pair at that position is in set, so you can pass either the full set returned by find_boundary (or a subset) or a sparser representative-only set.

Defined for each FEM discretization (FEM1D, FEM2D_P1, FEM2D_P2, FEM3D). For spectral discretizations the zero-trace subspace is built by basis truncation rather than by node masking; the spectral amg does not accept dirichlet_nodes and find_boundary returns the perimeter Chebyshev nodes (paired with the single notional element index 1) for reference only.

Empty or singleton node sets are allowed; the resulting AMG problem may still be well-posed if the variational form carries a mass term.

find_boundary(geom::Geometry{...,FEM2D_P1{T}}) -> Vector{Tuple{Int,Int}}

(v, t) index pairs into geom.x for every vertex on ∂Ω. A corner shared by k triangles contributes its k pairs (one per triangle that owns it).

find_boundary(geom::Geometry{...,FEM2D_P2{T}}) -> Vector{Tuple{Int,Int}}

(v, t) index pairs into geom.x for every P2+bubble DOF (corner vertex or edge midpoint) on ∂Ω. Centroids never appear (they are interior by construction). Duplicates are present (a corner shared by k triangles contributes its k pairs; a boundary-edge midpoint contributes its single pair).

find_boundary(geom::Geometry{...,SPECTRAL1D{T}}) -> Vector{Tuple{Int,Int}}

The two (v, t) pairs [(1, 1), (n, 1)] for the endpoint Chebyshev nodes. Spectral geometries use a single notional element (size(geom.x, 2) == 1) since there is no real per-element structure; the flattened view has one row per unique node. Informational only: the spectral amg builds the zero-trace subspace by basis truncation, not node masking; it does not accept dirichlet_nodes.

find_boundary(geom::Geometry{...,SPECTRAL2D{T}}) -> Vector{Tuple{Int,Int}}

(v, 1) pairs (single notional element) for every Chebyshev node on the perimeter of the tensor-product spectral 2D mesh. Informational only: the spectral amg builds the zero-trace subspace by basis truncation, not node masking; it does not accept dirichlet_nodes.

find_boundary(geom::Geometry{...,TensorFEM{d,T}}) -> Vector{Tuple{Int,Int}}

(v, e) index pairs into geom.x for every Q_k DOF on ∂Ω. A (d-1)-face used by exactly one element is on the boundary; every DOF on such a face is returned (corner / edge / face-interior, including the k≥2 interior-of-face nodes).

geometric_mg(geom::Geometry, L::Int) -> MultiGrid

Build a geometric-subdivision multigrid hierarchy of L levels on top of geom. The returned MultiGrid's geometry is the finest mesh (after L-1 levels of subdivision).

interpolate(M::Geometry, z::Vector, t)

Interpolate a solution vector at specified points.

Given a solution z on the mesh M, evaluates the solution at new points t using the appropriate interpolation method for the discretization.

Supported discretizations

• 1D FEM (FEM1D): piecewise-linear interpolation
• 1D spectral (SPECTRAL1D): spectral polynomial interpolation
• 2D spectral (SPECTRAL2D): tensor-product spectral interpolation

Note: 2D FEM interpolation is not currently provided.

Arguments

• M::Geometry: The geometry containing grid and basis information
• z::Vector: Solution vector on the finest grid (length must match number of DOFs)
• t: Evaluation points. Format depends on dimension:
  • 1D: scalar or Vector{T} of x-coordinates
  • 2D spectral: Matrix{T} where each row is [x, y]

Returns

Interpolated values at the specified points. Shape matches input t.

Examples

# 1D interpolation (FEM)
geom = subdivide(fem1d(; nodes=collect(range(-1.0, 1.0, length=3))), 3)
z = sin.(π .* vec(geom.x))
y = interpolate(geom, z, 0.5)
y_vec = interpolate(geom, z, [-0.5, 0.0, 0.5])

# 2D interpolation (spectral)
geom = spectral2d(n=4)
xf = reshape(geom.x, :, size(geom.x, 3))   # flat (n_nodes, 2) view
z = exp.(-xf[:,1].^2 .- xf[:,2].^2)
points = [0.0 0.0; 0.5 0.5; -0.5 0.5]
vals = interpolate(geom, z, points)

linesearch_backtracking(::Type{T}=Float64; beta=T(0.5)) where {T}

Create a backtracking line search function for Newton methods.

Arguments

• T : numeric type for computations (default: Float64).

Keyword arguments

• beta : backtracking parameter for step size reduction (default: 0.5).
• c1 : Armijo sufficient-decrease constant c₁ (default: 0.1).

Returns

A line search function ls(x, y, g, n, F0, F1; printlog) where:

• x : current point (vector of type T).
• y : current objective value F0(x).
• g : current gradient F1(x).
• n : search direction (typically Newton direction H\g).
• F0 : objective function.
• F1 : gradient function.
• printlog : logging function.

Returns (xnext, ynext, gnext) where xnext = x - s*n for some step size s.

Algorithm

Implements the Armijo backtracking line search with sufficient decrease condition: F(x - s*n) ≤ F(x) - c₁ * s * ⟨∇F(x), n⟩, where c₁ is the keyword c1 (default 0.1). The step size starts at s = 1 and is reduced by factor beta until the condition is satisfied or numerical limits are reached.

Notes

This is a robust and commonly used line search that guarantees sufficient decrease in the objective function, making it suitable for general nonlinear optimization.

linesearch_illinois(::Type{T}=Float64; beta=T(0.5)) where {T}

Create an Illinois-based line search function for Newton methods.

Arguments

• T : numeric type for computations (default: Float64).

Keyword arguments

• beta : backtracking parameter for step size reduction when Illinois fails (default: 0.5).

Returns

A line search function ls(x, y, g, n, F0, F1; printlog) where:

• x : current point (vector of type T).
• y : current objective value F0(x).
• g : current gradient F1(x).
• n : Newton direction (typically H\g where H is the Hessian).
• F0 : objective function.
• F1 : gradient function.
• printlog : logging function.

Returns (xnext, ynext, gnext) where xnext = x - s*n for some step size s.

Algorithm

The Illinois algorithm finds a root of φ(s) = ⟨∇F(x - s*n), n⟩, which corresponds to the exact line search condition. If the Illinois solver fails or encounters numerical issues, the step size is reduced by factor beta and the process repeats.

Notes

This line search strategy aims for the exact minimizer along the search direction, making it potentially more aggressive than backtracking but also more expensive per iteration.

mgb_solve(prob::MGBProblem; device=default_device(), kwargs...) -> MGBSOL

MultiGrid Barrier (MGB) solver for nonlinear convex optimization problems on a multigrid hierarchy. Operates in a feasibility phase followed by a main optimization phase, with damped Newton inner solves and line search.

Solves an assembled MGBProblem — build one with assemble (where the problem-specification keywords p, f, g, Q, state_variables, D, … live), or take one from the Zoo. The problem is moved to device, solved there, and the solution moved back, so the returned MGBSOL is always in native CPU types regardless of device.

Keyword Arguments

Backend

• device::Type{<:Device} = default_device(): compute backend, CPUDevice (default) or CUDADevice (requires using CUDA, CUDSS_jll). The problem is moved to the device, solved there, and the solution moved back; the returned MGBSOL is always native.

Output Control

• verbose::Bool = true: progress bar.
• logfile = devnull: optional log stream.

Solver Control (forwarded to mgb_driver)

• tol, t, t_feasibility, maxit, kappa, early_stop, max_newton, stopping_criterion, line_search, finalize, progress, printlog.

Returns

An MGBSOL whose z is the fine-level solution matrix and whose geometry is the fine-level Geometry (the MultiGrid itself is not stored).

Examples

sol = mgb_solve(assemble(amg(fem1d(; nodes = collect(range(-1.0, 1.0, length=33)))); p = 1.5))
sol = mgb_solve(assemble(amg(subdivide(fem2d_P2(), 3)); p = 1.5))
sol = mgb_solve(assemble(amg(spectral2d(n = 8)); p = 2.0); device = CPUDevice)
sol = mgb_solve(Zoo.p_harmonic(amg(fem2d_P2()); p = 1.5); tol = 1e-4)

native_to_cuda(geom::Geometry) -> Geometry
native_to_cuda(mg::MultiGrid) -> MultiGrid

Convert a native (CPU) Geometry or MultiGrid to CUDA GPU types, faithfully preserving matrix types: BlockDiag operators stay block (driving the structured batched-GEMM Hessian assembly), sparse matrices become CuSparseMatrixCSR. FEM geometries always carry BlockDiag operators, so the solve is structured; only the spectral discretizations use dense operators. Requires using CUDA, CUDSS_jll.

native_to_device(D::Type{<:Device}, x)

Move x from native (CPU) types onto device D. CPUDevice is the identity; the CUDA extension supplies the CUDADevice method, delegating to native_to_cuda. The inverse is device_to_native.

parabolic_solve(mg::MultiGrid; kwargs...) -> ParabolicSOL

Solve time-dependent p-Laplace problems using implicit Euler timestepping on the multigrid hierarchy mg.

Keyword Arguments

Discretization

• state_variables = [:u :dirichlet; :s1 :full; :s2 :full].
• D: differential operators (default depends on spatial dimension).
• dim::Int: spatial dimension (auto-detected from mg).

Time Integration

• t0=T(0), t1=T(1), h=T(0.2), ts=t0:h:t1.

Problem Parameters

• p::T=T(1): exponent for the p-Laplacian.
• f1: source term (t, x) -> T (default: (t,x)->T(0.5)).
• g: initial/boundary conditions (t, x) -> Vector{T}.
• Q: convex constraints.

Output Control

• verbose::Bool=true: progress bar.

Additional Parameters

• rest...: forwarded to mgb_solve for each time step.

Examples

sol = parabolic_solve(amg(fem2d_P2()); p=2.0, h=0.1)
sol = parabolic_solve(amg(fem1d(; nodes=collect(range(-1.0, 1.0, length=33)))); p=1.5, h=0.05)

spectral1d(::Type{T}=Float64; n=16) -> Geometry

Construct a 1D spectral single-level Geometry with n Chebyshev nodes. Use amg(geom) to attach a multigrid hierarchy.

spectral2d(::Type{T}=Float64; n=4) -> Geometry

Construct a 2D tensor-Chebyshev spectral single-level Geometry. Use amg(geom) to attach the spectral multigrid hierarchy.

stopping_exact(theta::T) where {T}

Create an exact stopping criterion for Newton methods.

Arguments

• theta : tolerance parameter for gradient norm relative decrease (type T).

Returns

A stopping criterion function with signature: stop(ymin, ynext, gmin, gnext, n, ndecmin, ndec) -> Bool

where:

• ymin : minimum objective value seen so far.
• ynext : current objective value.
• gmin : minimum gradient norm seen so far.
• gnext : current gradient vector.
• n : current Newton direction.
• ndecmin : square root of minimum Newton decrement seen so far.
• ndec : square root of current Newton decrement.

Algorithm

Returns true (stop) if both conditions hold:

1. No objective improvement: ynext ≥ ymin
2. Gradient norm stagnation: ‖gnext‖ ≥ theta * gmin

Notes

This criterion is "exact" in the sense that it requires both objective and gradient stagnation before stopping, making it suitable for high-precision optimization. Typical values of theta are in the range [0.1, 0.9].

stopping_inexact(lambda_tol::T, theta::T) where {T}

Create an inexact stopping criterion for Newton methods that combines Newton decrement and exact stopping conditions.

Arguments

• lambda_tol : tolerance for the Newton decrement (type T).
• theta : tolerance parameter for the exact stopping criterion (type T).

Returns

A stopping criterion function with signature: stop(ymin, ynext, gmin, gnext, n, ndecmin, ndec) -> Bool

where:

• ymin : minimum objective value seen so far.
• ynext : current objective value.
• gmin : minimum gradient norm seen so far.
• gnext : current gradient vector.
• n : current Newton direction.
• ndecmin : square root of minimum Newton decrement seen so far.
• ndec : square root of current Newton decrement (√(gᵀH⁻¹g)).

Algorithm

Returns true (stop) if either condition holds:

1. Newton decrement condition: ndec < lambda_tol
2. Exact stopping condition: stopping_exact(theta) is satisfied

Notes

This criterion is "inexact" because it allows early termination based on the Newton decrement, which provides a quadratic convergence estimate. The Newton decrement λ = √(gᵀH⁻¹g) approximates the distance to the optimum in the Newton metric. Typical values: lambda_tol ∈ [1e-6, 1e-3], theta ∈ [0.1, 0.9].

subdivide(geom::Geometry, L::Int) -> Geometry

Refine geom's mesh by L-1 levels of geometric subdivision and return a new fine-mesh Geometry, discarding the transfer operators that the geometric MG construction would otherwise produce. For FEM discretizations the fine operators are BlockDiag, so a subsequent amg(subdivide(geom, L)) runs the batched-GEMM (structured) Hessian assembly via the D_fine path.

plot(sol::MGBSOL, k::Int=1; kwargs...)
plot(sol::ParabolicSOL, k::Int=1; kwargs...)
plot(M::Geometry, z::Vector; kwargs...)
plot(M::Geometry, ts::AbstractVector, U::Matrix; frame_time=..., embed_limit=..., printer=...)

Visualize solutions and time sequences on meshes.

• 1D problems: Line plot. For spectral methods, you can specify evaluation points with x=-1:0.01:1.
• 2D FEM: Triangulated surface plot using the mesh structure.
• 2D spectral: 3D surface plot. You can specify evaluation grids with x=-1:0.01:1, y=-1:0.01:1.

Time sequences (animation):

• Call plot(M, ts, U; frame_time=1/30, printer=anim->nothing) where U has columns as frames and ts are absolute times in seconds (non-uniform allowed).
• Or simply call plot(sol) where sol is a ParabolicSOL returned by parabolic_solve (uses sol.ts).
• Animation advances at a fixed frame rate given by frame_time (seconds per video frame). For irregular ts, each video frame shows the latest data frame with timestamp ≤ current video time.
• The printer callback receives the Matplotlib animation object; use it to display or save (e.g., anim.save("out.mp4")).
• embed_limit controls the maximum embedded HTML5 video size in megabytes.

When sol is a solution object returned by mgb_solve, plot(sol,k) plots the kth component sol.z[:, k] using sol.geometry. plot(sol) uses the default k=1.

All other keyword arguments are passed to the underlying PyPlot functions.

plot(sol::ParabolicSOL, k::Int=1; kwargs...)

Animate a 3D parabolic solution (component k).

plot(M::Geometry{...,FEM3D}, ts::AbstractVector, U::Matrix; frame_time, kwargs...)

Animate a time series of 3D solutions (columns of U at times ts) into an HTML5anim MP4 via ffmpeg. Color limits and isosurfaces are fixed across frames from the global range of U.

plot(geo::Geometry{...,FEM3D}, u::Vector; kwargs...)

Plot a 3D Q_k solution u on a hexahedral geometry using PyVista (volume render + isosurfaces, with optional slices). Returns an MGB3DFigure (PNG). See the keyword arguments below for volume/isosurface/slice options.

Keyword Arguments

• plotter=(window_size=(800, 600),): options passed to pv.Plotter().
• volume=(;): options for add_volume; pass nothing to disable.
• scalar_bar_args=...: options for add_scalar_bar; pass nothing to hide.
• isosurfaces: isosurface values (default: 5 evenly spaced; [] to disable).
• contour_mesh, slice, slice_orthogonal, slice_along_axis, show_grid, camera_position: see the slicing/grid options.

savefig(fig::MGB3DFigure, filename::String)

Save the figure to a file (e.g., "plot.png"). Extends PyPlot.savefig.
